40A PWM solar controller:Build-in industrial microcontroller for automatical management, memorizing various parameters set by the user and the data won't be lost when the battery runs out.
| Specification | |
| Model Number | AT40A 12V 24V |
| Type | PWM |
| Model Overall Size (L*W*H) | 192.5mm*109mm*43mm |
| Installation Hole Distance (L;H) | 182mm ; 80mm |
| Mounting Hole Size | 5mm |
| Display | LCD |
| Case Material | Fireproof ABS |

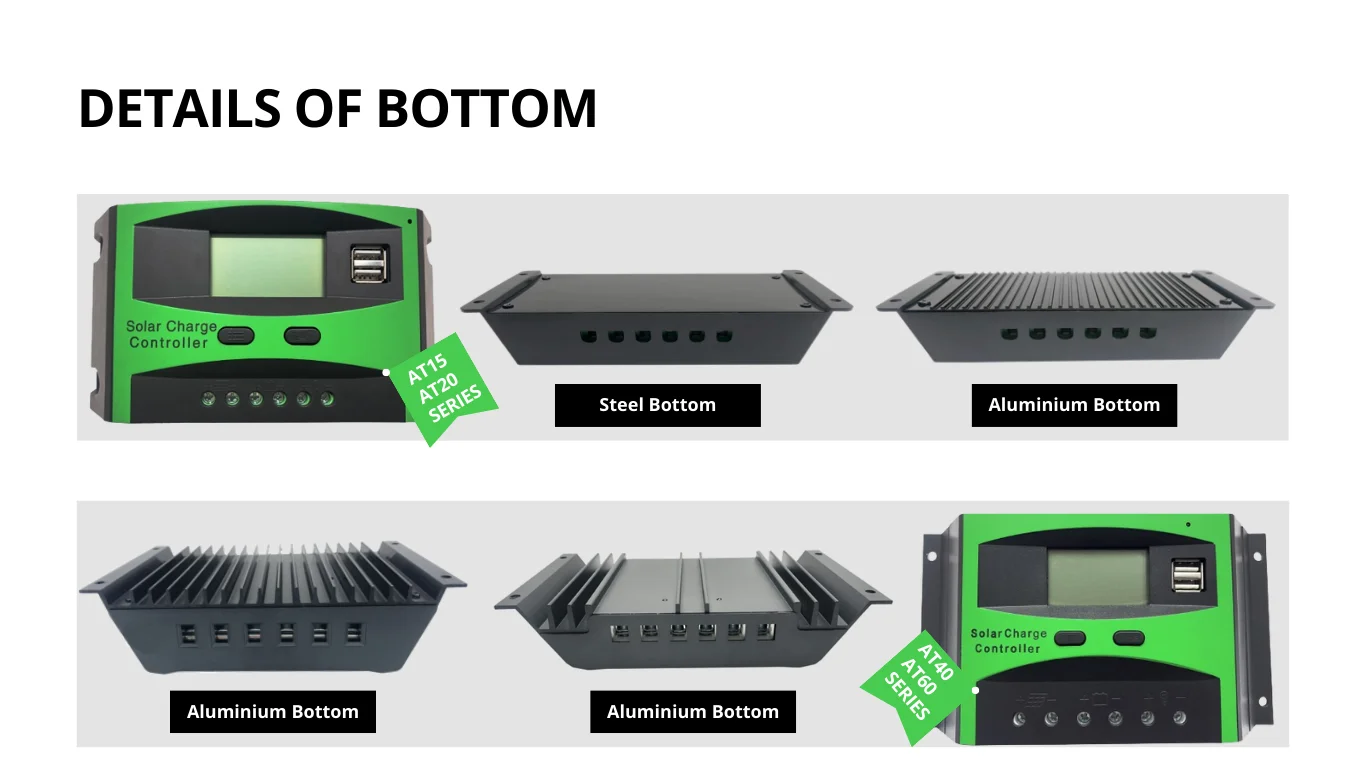

| Case Bottom Material | Steel & Aluminum |
| Connect Port | USB; AUDIO |
| Work Time (h) | Always |
| Max PV Power | 240 |
| Max PV Voltage | 150 |
| Certificate | CE |
| Warranty | 1 YEAR |
| Application | Charger Controller, Wind Controller, Collector Controller, Water Heater Controller, Solar Working Station, Lighting Controller, |
| Thermal Controller, Voltage Controller, Solar System Controller | |
| Product Parameters | |||||
| Model No. | AT10 | AT15 | AT20 | AT40 | AT60 |
| Rated Voltage | 12V;24V | 12V;24V | 12V;24V | 12V;24V | 12V;24V |
| Rated Charge Current | 10A; 20A; 30A | 10A; 20A; 30A | 10A; 20A; 30A | 10A; 20A; 30A;40A; | 10A; 20A; 30A;40A;60A |
| Output | 10W USB | 10W USB | 10W USB | 10W USB | 10W USB |
| Battery | Lead Acid Cell or Optional | Lead Acid Cell or Optional | Lead Acid Cell or Optional | Lead Acid Cell or Optional | Lead Acid Cell or Optional |
| Temperature Capacity | -35℃ | -35℃ | -35℃ | -35℃ | -35℃ |
